// OR-MM-M4 · 360° drag to rotate

Rendered from the exact manufacturing model. Printed to order in PETG.

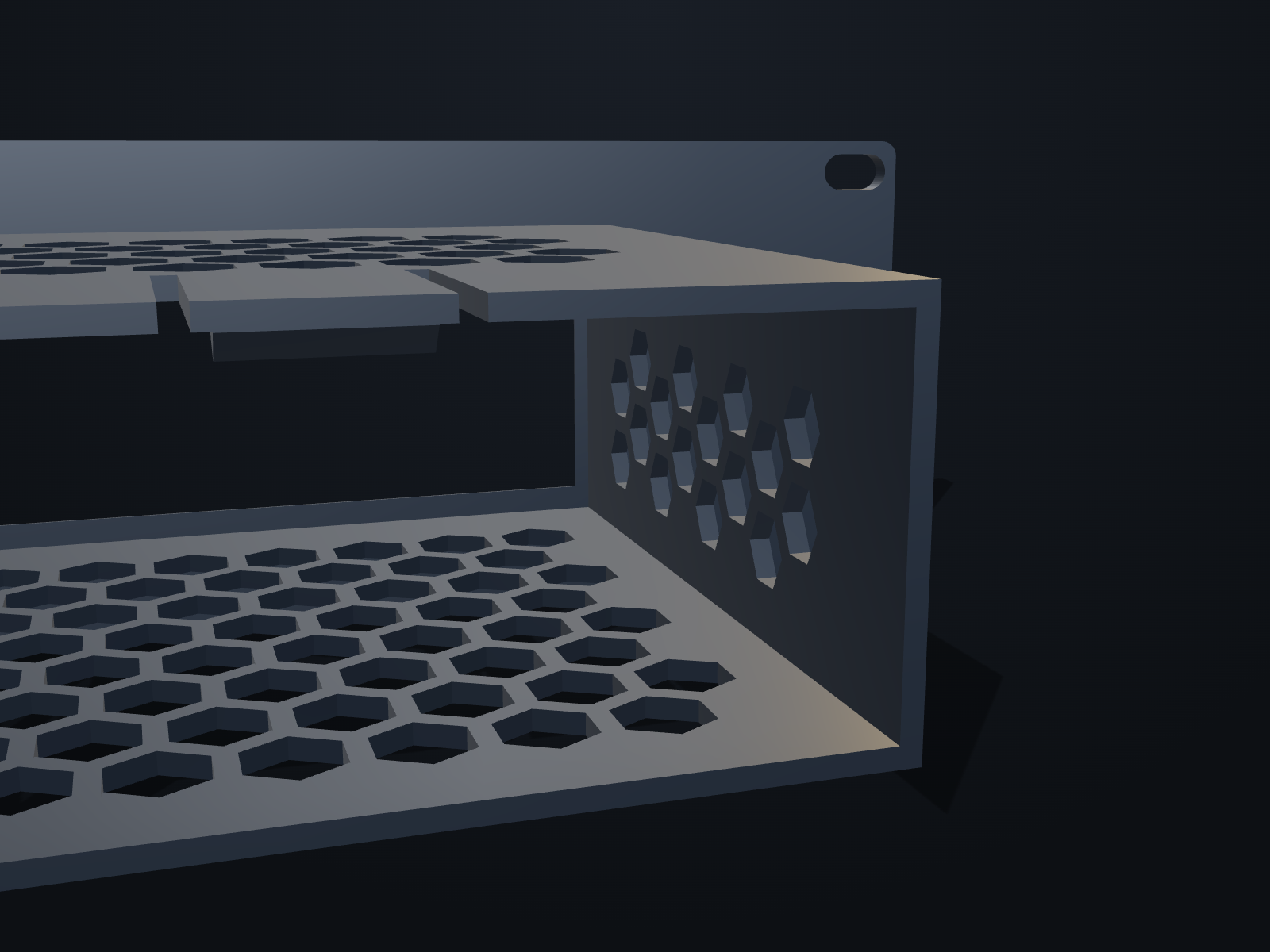

Mac mini (M4) face mount — close-up render of the signature feature
// OR-MM-M4 · engineering drawing as manufactured
FRONT ELEVATION 254 mm 2U · 88 mm SIDE ELEVATION 132 mm deep
OR-MM-M4 · 2U · 10-inch

Mac mini (M4) face mount

A closed-box face mount for the M4 Mac mini, cloned from our fit-tested switch-mount architecture: slide in from the rear, seat on the bezel lip, and the flex finger clicks behind the rear edge. The mini’s face sits 1.6 mm behind the faceplate — front ports and LED visible, nothing covered. The floor matters most on this machine: the M4 intakes AND exhausts through its bottom ring, so the sleeve floor is hex-vented nearly edge to edge and the entire ring sits in free air. Apple’s bottom-mounted power button stays reachable through the floor vents. Whole-U sizing: 2U lands the slots on the proven 1U hole rows.

Width254 mm · 10-inch standard
Height2U · 88 mm — slots on the standard 1U hole rows
FitsMac mini 2024+ (M4 / M4 Pro) · 127 × 127 × 50
AirflowBottom ring in free air — floor 44% open
PowerBottom button reachable through the floor vents
RetentionBezel seat + rear flex-finger click
MaterialPETG · 70°C continuous
Hardware4 × M6 included
Lead timeMade to order · 48 hr

// Fits Lab Rax, DeskPi RackMate, and any 10-inch rack

$29made to order · 48 hr
Download the print file (STL)

// Custom sizes, ports, or engraving runs — support@oara.ai
